Teneth Cutter Plotter Carriage Interface Board

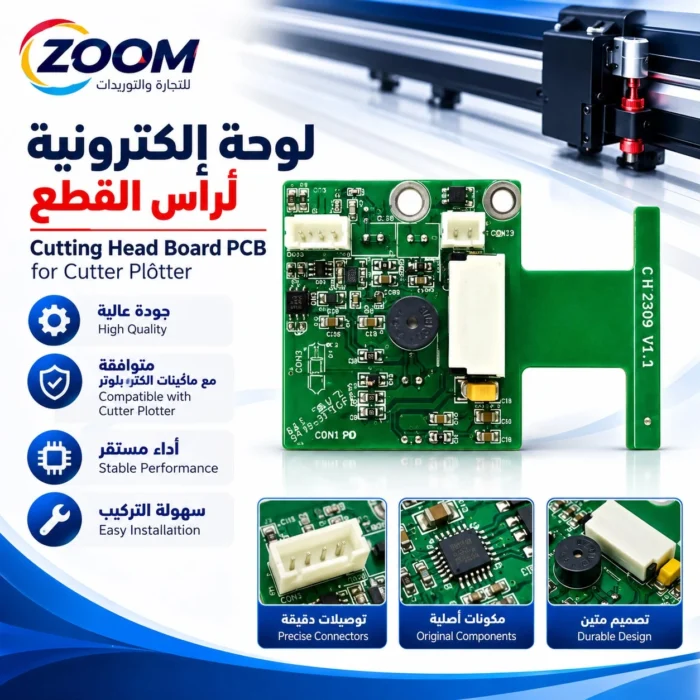

Genuine carriage interface circuit board for Teneth cutting plotters. Positioned inside the cutting head assembly to distribute control signals from the main flat ribbon cable to the voice coil solenoid and optical sensors.

Key Features & Operational Advantages

• Stable Signal Delivery: High-performance SMT components ensure instantaneous solenoid response for clean down-force cutting
• Solenoid Overload Protection: Onboard transient suppression diodes protect coil drivers from inductive back-EMF spikes
• OEM Factory Connectors: Direct socket match for Teneth FFC ribbon cables, sensor leads, and cutting head solenoid
• Multi-Layer Industrial PCB: Reinforced PCB substrate resists operational vibration and shop-floor airborne dust

Technical Specifications

Compatibility & Applications

• Resolves erratic cutting depth, failed tool drop, and intermittent blade pressure
• Fixes sensor disconnect errors during contour mark registration
• Direct replacement installation inside head carriage chassis
